CAR MEASUREMENT INSTRUCTIONS

BASIC INFORMATION:

Each RAXO BOX is equipped with:

-adjustable bed length: 176 cm or 191 cm.

-adjustable bed height. IMPORTANT: Using the RAXO box does not require removing the seats!

CHECKED CARS, SEE THE LIST

Step 1

PREPARATION FOR MEASUREMENT

Before taking your measurements, prepare the necessary measuring tools, such as a measuring tape and a piece of paper on which to write down the most important dimensions.

You can take the measurements yourself or with the help of another person.

Step 2

MEASURING THE LENGTH INSIDE THE CAR

Fold down the rear seats. Measure according to the drawing. If you can achieve the minimum length of 176 cm, you can use the RAXO BOX. If you can't achieve the minimum length of 176 cm, or if the specified length is not sufficient, proceed to step 3.

Step 3

ACCURATE LENGTH MEASUREMENT

Fold down the rear seats. Move the driver and passenger seats as far forward as possible. Tilt the seatbacks toward the steering wheel and dashboard. Measure the length approximately halfway up the backrest of the driver or passenger seat. If you measure a minimum length of 176 cm or more, the bed can be folded out in the vehicle. The maximum bed length is 191 cm.

Step 4

CONFIGURATIONS OF THE FOLDED BOX IN THE CAR

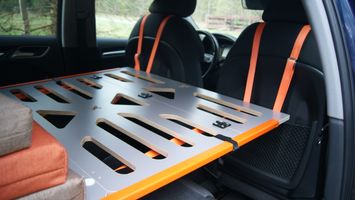

Configuration 1. Seat moved as far forward as possible with the backrest tilted towards the steering wheel. Configuration 2. Seat moved as far forward as possible, backrest tilted as far back as possible, and headrest extended.

Step 5

TRUNK WIDTH MEASUREMENT

Take two measurements of the rack width. Dimension S1 is measured around the outermost plastic elements. S1 - minimum 93 cm. Dimension S2 is measured at the base of the rack. S2 - minimum 94 cm.
